HibouAir CO2 Wi-Fi

Cloud-connected indoor air quality monitor

Track ventilation and indoor comfort from anywhere

HibouAir CO2 Wi-Fi is a compact multi-sensor monitor for offices, classrooms, meeting rooms, homes, and other occupied indoor spaces. It measures carbon dioxide together with temperature, humidity, VOC, pressure, and ambient light.

The device connects directly to a Wi-Fi network and sends measurements to the HibouAir Cloud Lite dashboard. View live readings, review historical trends, receive alerts, and compare spaces without installing a separate gateway.

Bluetooth is available for device setup, while Wi-Fi provides continuous remote access. This makes the monitor easy to deploy wherever teams need ongoing visibility into ventilation and indoor environmental conditions.

CO2
VOC
Pressure
Temperature
Humidity
Light

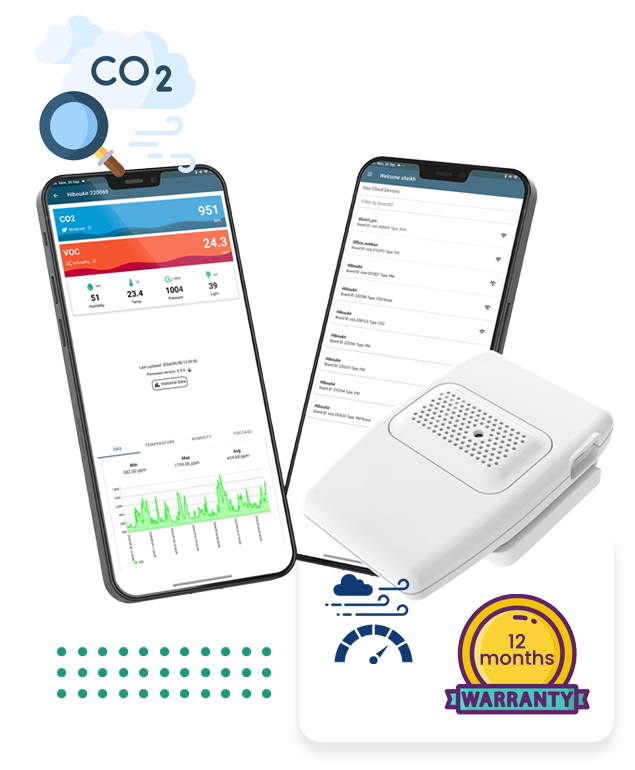

Wi-Fi connectivity HibouAir CO2 Wi-Fi air quality monitor
Specifications: HibouAir CO2 Wi-Fi Air Quality Monitor — SSD002/2
CONNECTIVITY Wi-Fi 802.11n (2.4 GHz) and Bluetooth Low Energy
POWER +5VDC input on micro USB connector
AVERAGE CURRENT CONSUMPTION Type 35mA
SENSORS
  • NDIR CO2 sensor, fully calibrated and linearized
  • Temperature: 0–50°C, accuracy ±1°C
  • Humidity: 0–100% r.H., accuracy ±3% r.H.
  • VOC: IAQ index and ppm
  • Pressure: 300–1100 hPa, accuracy ±0.6 hPa
  • Ambient light: resolution 100mLux
CO2 MEASUREMENT RANGE 400ppm–10000ppm
CO2 ACCURACY ±(30ppm + 3%)
MECHANICAL 73.2 mm (L), 50 mm (W), 12.4 mm (D)
ENVIRONMENTAL 0°C to 50°C; humidity up to 95%; IP22
MOUNTING Wall-mounted holder
CASE MATERIAL ABS
CERTIFICATION FCC & CE, RoHS compliant, halogen-free
PART NUMBER SSD002/2
ACCESSORIES Power adapter and 3-meter USB power cable
Datasheet — HibouAir CO2 Wi-Fi (SSD002/2) Installation Manual
